In any liquid crystal display (LCD), whether it's a mobile phone screen, industrial touch screen, automotive central control screen, smart home panel, or small-sized instrument panel digital display, a core component is indispensable—the LCD Driver (LCD driver IC).

It determines whether the LCD screen can light up normally, whether the display is stable and clear, whether the interface can refresh smoothly, and even affects the product's power consumption, color, and lifespan.

This article will provide a comprehensive analysis of LCD Drivers, from basic concepts, working principles, common categories to installation (driver porting) methods.

I. What is an LCD Driver?

An LCD Driver (LCD driver IC) is a chip specifically designed to control the lighting, refreshing, and data display of liquid crystal pixels. Without a driver IC, an LCD cannot display any image.

The functions of an LCD driver are:

✔ Receive data from the MCU, CPU, or GPU

✔ Convert digital signals into voltage and timing signals that the LCD can recognize

✔ Control pixel brightness, color, and refresh rate

✔ Handle backlight, gamma, timing, and scanning logic

✔ Responsible for screen initialization (power-on timing)

It is the "heart" of the LCD module and the key to displaying all images.

II. Main Functions of an LCD Driver (SEO-friendly content structure)

1. Pixel Driving

The driver IC provides control voltage to each pixel, enabling brightness and color changes.

2. Timing Control

Includes:

Horizontal Timing (HSYNC)

Vertical Timing (VSYNC)

Dot Clock (DOTCLK)

Power-down and Power-on Sequence

Timing errors can cause screen flickering, distorted images, or failure to power on.

3. Data Interface Analysis

Common Interfaces:

SPI (Small Size)

I2C

RGB Parallel Port

MCU 8080/6800

MIPI DSI (Mainstream for Mobile Phone Screens)

LVDS / eDP (Laptops and Large-Size Displays)

4. Gamma Calibration and Color Management

Used to improve overall grayscale distribution, making the image more natural.

5. Backlight Control (PWM or GPIO)

Adjusting brightness and reducing power consumption.

These functions determine whether the LCD Driver can achieve optimal display quality.

III. Common LCD Driver ICs (Suitable for Search Traffic Keywords)

The following are common driver IC models in the industry, for engineers' reference:

Small Size (1.3–4.3 inches)

ILI9341

ST7789

ILI9488

SSD1306 (OLED)

Medium-Large Size (7–12 inches)

ST7701

NT35510

JD9365

HX8394

Industrial/Automotive Grade

Dedicated drivers for BOE, Tianma, and Innolux panels

High Temperature Durability (-30°C~85°C)

These models are also popular SEO search terms, precisely targeting engineering readers.

IV. How to Install an LCD Driver? (Core SEO Topic)

Installing an LCD driver is not like double-clicking to install a computer monitor; engineers need to complete "initialization code porting" and "timing configuration."

The following describes the complete installation process of an LCD driver in an embedded system.

(I) LCD Driver Installation Steps (MCU/Embedded System)

Step 1: Confirm the Driver IC model used by the LCD screen

This can be found in:

The datasheet provided by the screen manufacturer

The model number printed on the FPC cable

Supplier technical support

This is a prerequisite for driver installation.

Step 2: Obtain the LCD Driver Initialization Code (Init Code)

Typically provided by:

Screen vendor

Solution provider

Official library (e.g., ST's official HAL library)

The Init Code includes:

Register settings

Power-on timing

Display orientation

Pixel format (RGB565, RGB888)

Gamma calibration

This is the crucial file for turning on the screen.

Step 3: Port to the MCU program (e.g., STM32, ESP32, NXP)

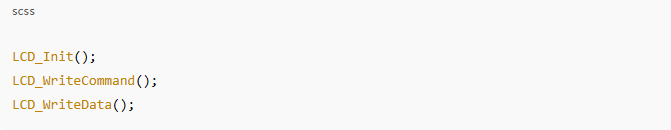

Write the Init Code:



Communicate with the driver IC via interfaces such as SPI/MIPI/RGB.

Step 4: Configure Display Timing

For RGB and MIPI screens, pay special attention to configuring:

hsync

vsync

porches

pixel clock

frame rate

Timing errors will cause:

❌ Screen flickering

❌ Color cast

❌ No display

❌ Screen flickering

Step 5: Configure Backlight (PWM or GPIO Control)

PWM control of brightness is the most common.

Step 6: Final Adjustment: Orientation, Color, Brightness

Including:

Rotation (0°/90°/180°/270°)

Gamma Adjustment

Brightness Adjustment

Color Balance

The LCD Driver installation is now complete.

(II) LCD Driver Installation in Linux/Android Systems

Applicable to:

RK3568 (Rockchip)

Allwinner A133 / F1C100S

Android automotive screen

Industrial control motherboard

Installation Process:

Modify Device Tree (DTS)

Load panel driver

Set MIPI / LVDS / eDP parameters

Adjust Gamma

Compile kernel and flash system

This is the most common LCD driver installation method in Linux systems.

V. What problems will occur if the LCD Driver is not installed correctly? (SEO Keyword Q&A)

Screen does not light up

Display inverted position

Screen flickering/flickering

Uneven grayscale

Color bias: bluish/reddish

Touch position misalignment (touchscreen compatibility issue)

Low refresh rate causing ghosting

Most of these problems can be solved by correctly installing the LCD Driver.

VI. Frequently Asked Questions (SEO Strong Keyword Area)

1. Are LCD Driver and screen driver the same thing?

No. The LCD Driver is a hardware IC, while the computer monitor driver (.inf) is a software configuration file.

2. Can the LCD Driver be replaced?

Usually not, the driver IC is designed to be bound to the screen structure.

3. What happens if the LCD Driver initializes incorrectly?

The screen will not light up or will display abnormally.

4. Why is it more difficult to install drivers for MIPI screens?

Because it involves:

Lane number configuration

HS/LP mode switching

More complex timing

In summary: The LCD driver is crucial to display quality.

Whether in consumer electronics or industrial equipment, the installation and configuration of the LCD driver determines whether the screen can function properly.

A correct driver will result in:

✔ Clearer images

✔ More stable refresh rates

✔ More accurate colors

✔ Lower power consumption

If you are doing product development or embedded projects, understanding how LCD drivers work and the installation process is essential.
